Mid-Duty Tensile Strength Filament Tape #224

Iem code: # 224
Free samples: Available.
Payment term: TT / Paypal /Western Union
Trade Terms: FOB/CIF/CFR/EXW
Lead time: Within 2 Weeks
Package: Hard cardboard box/plywood case/pallet
MOQ: 1000SQM

Product Description

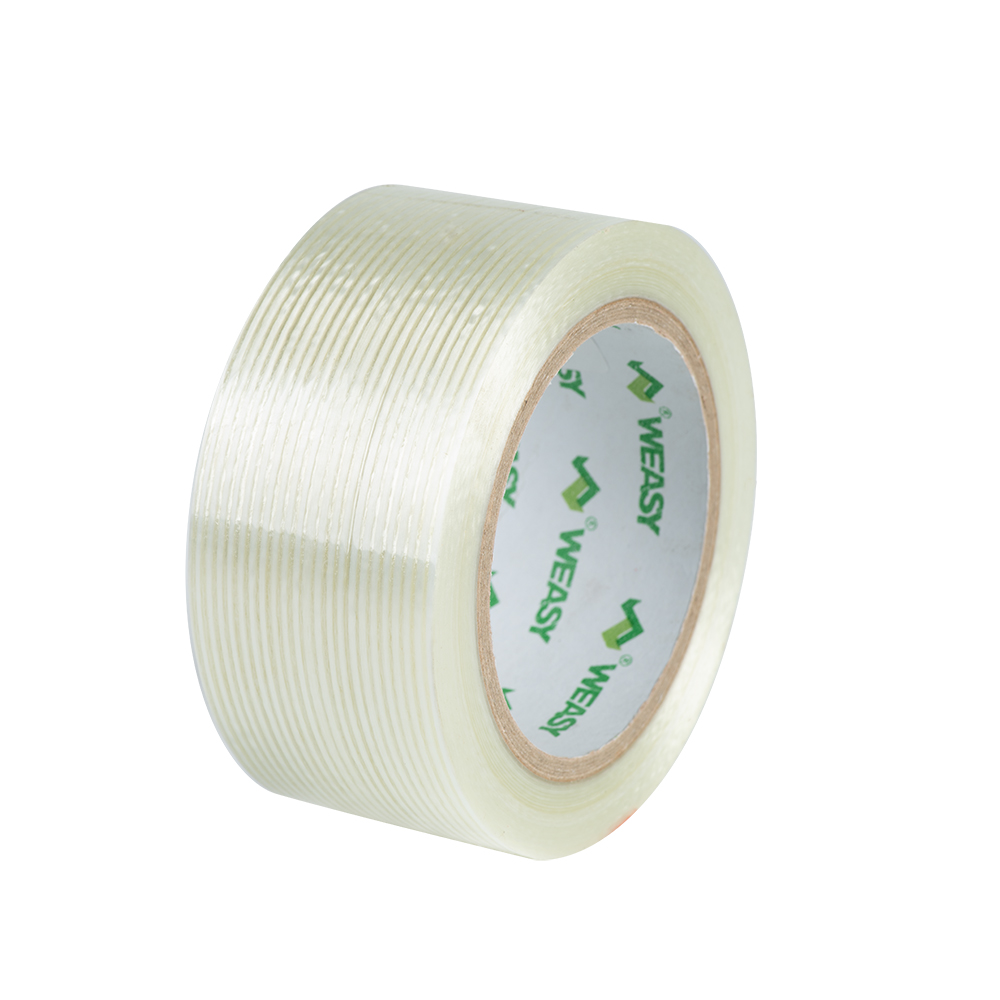

Weasy #224 is a transparent and reinforced filament tape. Filament adhesive tape consists for the most part of a strong carrier, like PET (polyethylene / polyester) fitted with a strong pressure-sensitive adhesive which can be a synthetic rubber adhesive or hot melt adhesive. Fiberglass filaments or polyester filaments are laminated to the film and by this incorporated into the material to support tear-resistance, Fiberglass filaments are one of the most important heavy duty packing materials in use.

Technical Information

Physical Properties	Standard	Metric	Test Method
Reinforcement	Fiberglass
Adhesive	Synthetic Rubber
Backing	BOPP
Color	Clear
Total Thickness	4.3 mil	0.11 mm	ASTM D-3652	GB/T7125
Peel Adhesion	79 oz/in	22 N/25mm	ASTM D-3330	GB/T2792
Holding Power	≥36 h	≥36 h	ASTM D-3654	GB/T4851
Tensile Strength	110 lbs/in	500N/25mm	ASTM D-3759	GB/T7753
Elongation at Break	5%	5%	ASTM D-3759	GB/T7753
Service Tem.--Mini	23℉	-5℃	BC/BD-220SE	BC/BD-220SE
Service Tem.--Max	158℉	70℃	DHG-9055A	DHG-9055A

Specifications

A variety of filament tape grades are available. Tensile strength grades range from 90 lb. to 472 lb. per inch of width. Different types and grades of adhesive are also available.
We can offer custom made size, width from 5mm to 1020mm, length from 20m to 500m.

*Application
