Heavy Duty Strapping Filament Tape #232H

  • Iem code:#232H
  • Free samples:  Available.
  • Payment term: TT / Paypal /Western Union
  • Trade Terms: FOB/CIF/CFR/EXW
  • Lead time: Within 2 Weeks
  • Package: Hard cardboard box/plywood case/pallet
  • MOQ: 1000SQM

Product Description

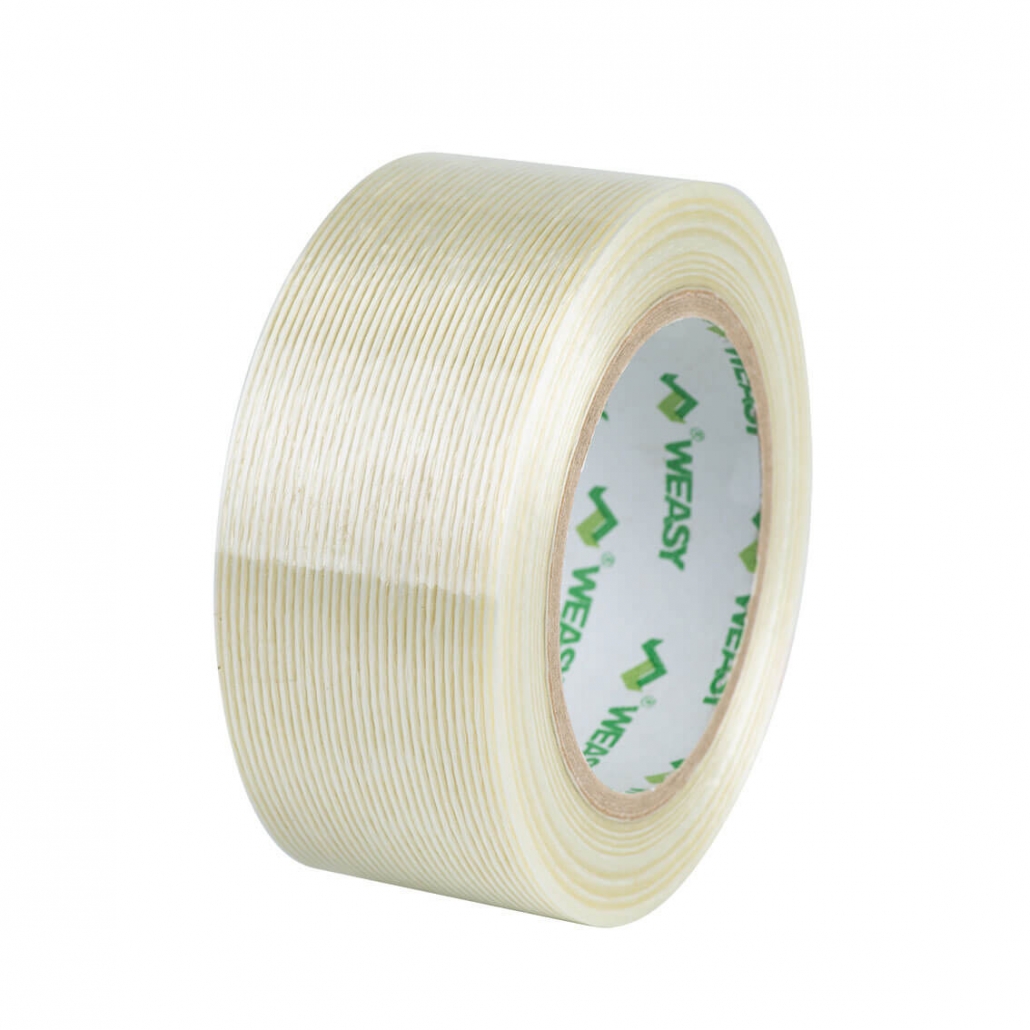

Mono Filament tape based on a polyester film laminated to fiberglass which has a good tensile strength as well as high adhesion.Ideal applications include bundling and strapping heavy goods, securing pallets and reinforcing of shipping cartons.Remains good adhesion at wide temperature range (depends on the nature and the weight of the sealing materials.

Technical Information

Physical PropertiesStandardMetricTest Method
AdhesiveSynthetic Rubber
Total Thickness6.6mil0.17 mmASTM D-3652GB/T7125
Peel Adhesion79 oz/in22 N/25mmASTM D-3330GB/T2792
Holding Power≥36 h≥36 hASTM D-3654GB/T4851
Tensile Strength315lbs/in1450N/25mmASTM D-3759GB/T7753
Elongation at Break5%5%ASTM D-3759GB/T7753
Service Tem.--Mini23℉-5℃BC/BD-220SEBC/BD-220SE
Service Tem.--Max158℉70℃DHG-9055ADHG-9055A


  • A variety of filament tape grades are available. Tensile strength grades range from 90 lb. to 472 lb. per inch of width. Different types and grades of adhesive are also available.
  • We can offer custom made size, width from 5mm to 1020mm, length from 20m to 500m.


  • *Palletizing of packaging
  • *Bending of tubes and bars
  • *Heavy packaging
  • *Closing of metal coils
  • *Paint anchor test
  • *Reinforcement and closing of cables
  • *Structuring of umbilical cord for marine probe
  • *General applications where tensile strength and good adhesion are required.



  • ISO9001:2015
  • SGS Report
