PET Double Sided Adhesive Tape #WTX-29

  • Iem code: #WTX-29
  • Free samples:  Available.
  • Payment term: TT / Paypal /Western Union
  • Trade Terms: FOB/CIF/CFR/EXW
  • Lead time: Within 2 Weeks
  • Package: Hard cardboard box/plywood case/pallet
  • MOQ: 1000SQM

Product Description

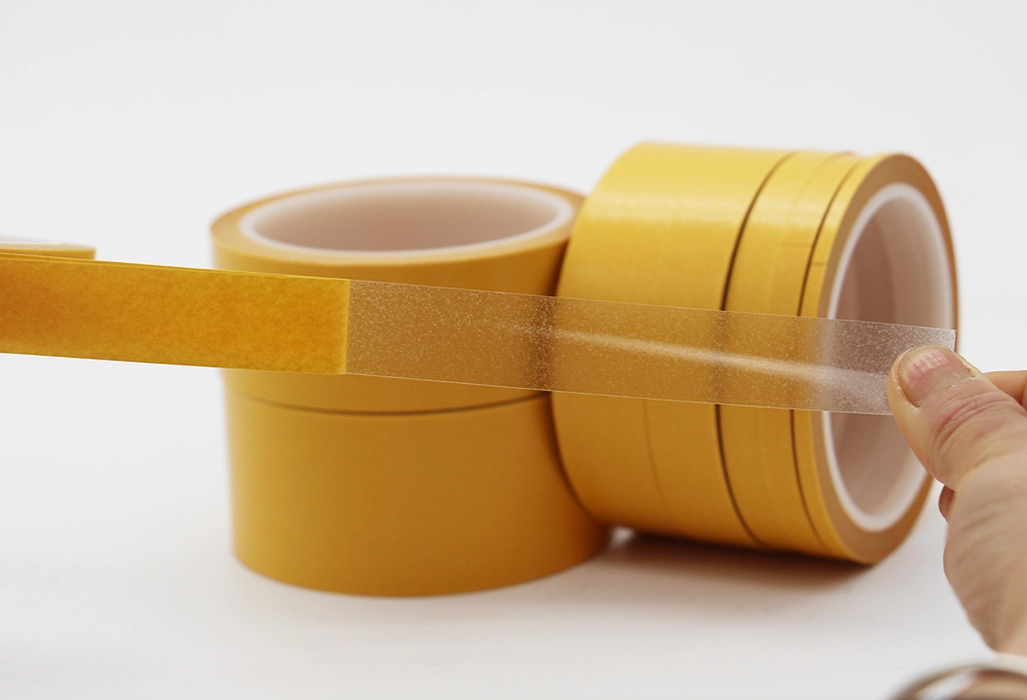

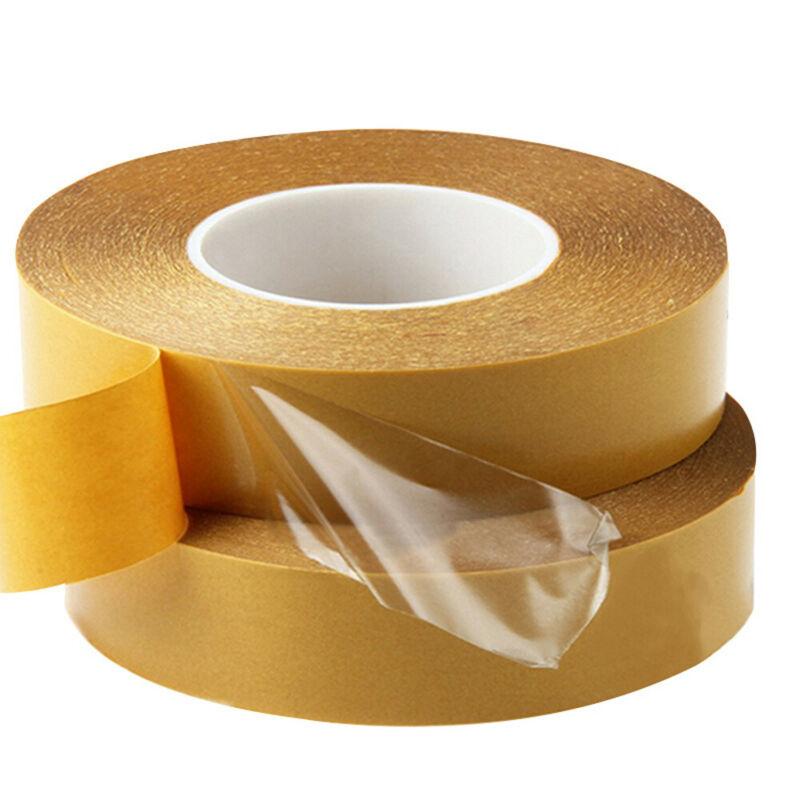

PET Double Sided Adhesive Tape for Electronic Components Bonding .The double sided pet tape is based on pet backing, double sides coated with strong acrylic adhesive, the tape can be double side coated with release paper for die cutting purpose.

Technical Information

Physical PropertiesStandardMetricTest Method
ReinforcementPET Film ( Polyester film)
AdhesiveSynthetic Rubber/Acrylic Adhesive
BackingGlassine Paper
Total Thickness10.9 mils0.28 mmASTM D-3652GB/T7125
Peel Adhesion180 oz/in50N/25mmASTM D-3330GB/T2792
Holding Power≥24h≥24hASTM D-3654GB/T4851
Tensile strength67 lbs/in300N/25mmASTM D-3759GB/T7753
Elongation at Break5%5%ASTM D-3759GB/T7753
Service Tem.--Mini23℉-5℃BC/BD-220SEBC/BD-220SE
Service Tem.--Max158℉70℃DHG-9055ADHG-9055A


  Short Term Temperature Resistance: 140C

Long Term Temperature Resistance: 80C

  Strong Tensile strength

  High viscosity


  1. opto-electronic industry

  2. Can be used to bond plastic, metal and LCD cushion material

3. Bond to mobile phone, computer, auto parts

4. Electronic components bonding



  • ISO9001:2015
  • SGS Report
