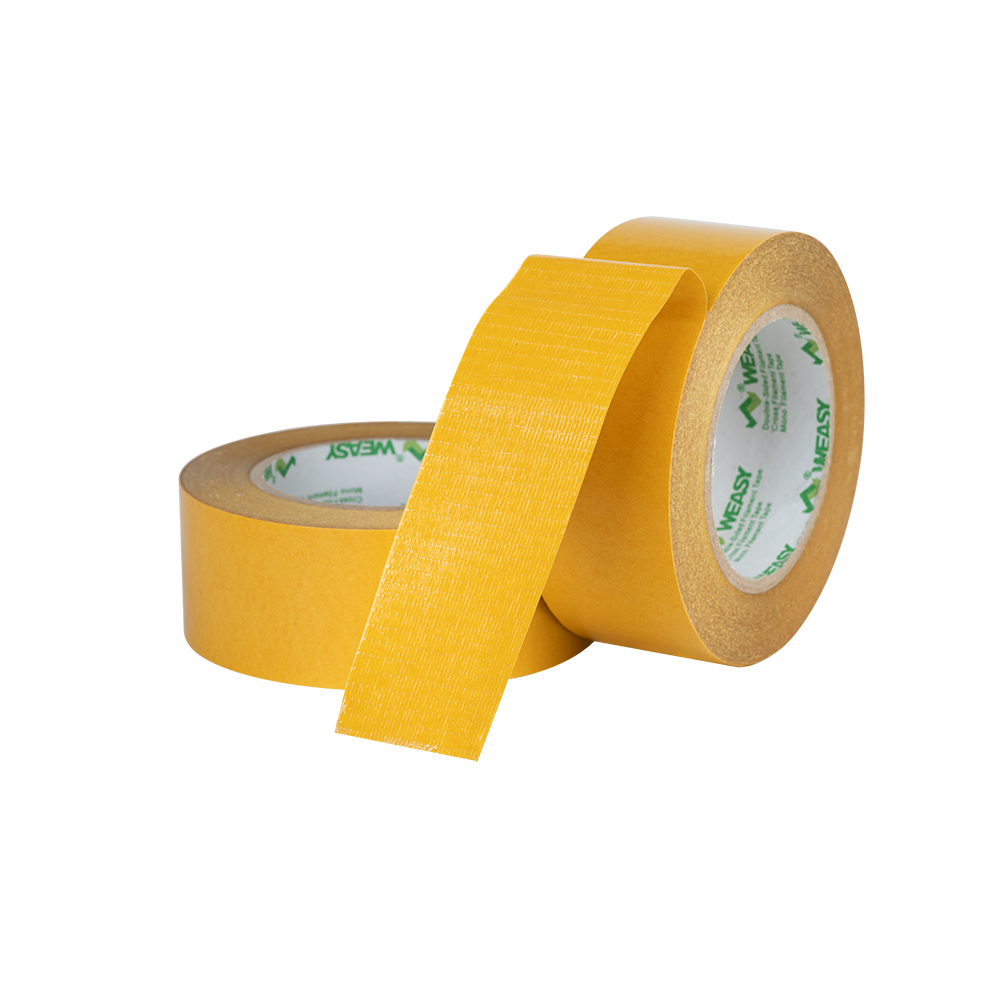

Double Sided Filament Tape #180xx

  • Iem code: #180xx
  • Free samples:  Available.
  • Payment term: TT / Paypal /Western Union
  • Trade Terms: FOB/CIF/CFR/EXW
  • Lead time: Within 2 Weeks
  • Package: Hard cardboard box/plywood case/pallet
  • MOQ: 1000SQM

Product Description

The reinforced fiberglass yarn of Double Sided Fiberglass Mesh Tapes GF-0302-180xx provides the filament tapes high tensile strength;the PET film backing provides excellent abrasion and moisture resistance. The proper packaging-grade adhesive is specially to provide good initial adhesion & long-term holding power.

Technical Information

Physical PropertiesStandardMetricTest Method
AdhesiveSynthetic Rubber
BackingGlassine Paper
Total Thickness10.9 mils0.28 mmASTM D-3652GB/T7125
Peel Adhesion180 oz/in50N/25mmASTM D-3330GB/T2792
Holding Power≥24h≥24hASTM D-3654GB/T4851
Tensile strength67 lbs/in300N/25mmASTM D-3759GB/T7753
Elongation at Break5%5%ASTM D-3759GB/T7753
Service Tem.--Mini23℉-5℃BC/BD-220SEBC/BD-220SE
Service Tem.--Max158℉70℃DHG-9055ADHG-9055A


  • A variety of filament tape grades are available. Tensile strength grades range from 90 lb. to 472 lb. per inch of width. Different types and grades of adhesive are also available.
  • We can offer custom made size, width from 5mm to 1020mm, length from 20m to 500m.


  • *Attach the weather strip
  • *Attach the carpet
  • *Heavy packaging
  • * Attach the banner.



  • ISO9001:2015
  • SGS Report
